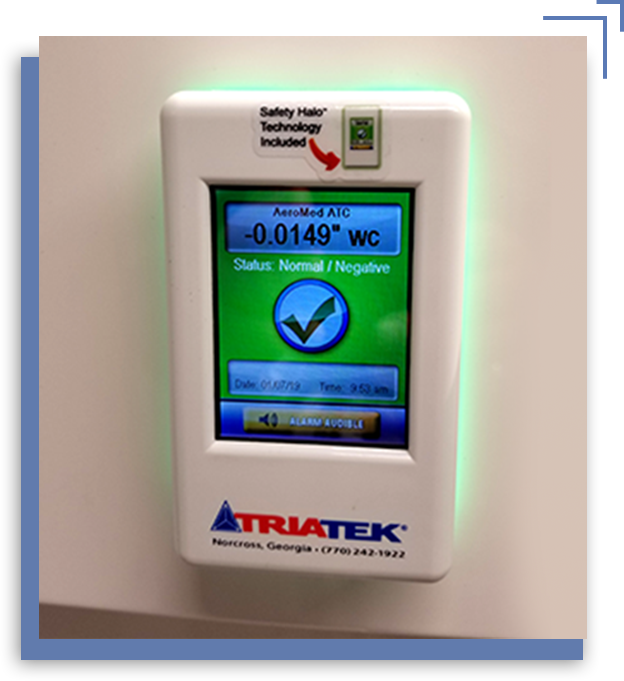

Designed for critical environments, the AeroMed ISO-Guard™ is capable of extremely accurate pressure differential measurements (to +/-0.0001”wg). Suitable for either negative or positive pressure applications, it is able to display and control room conditions such as pressure, temperature, airflow, and humidity.
ISO-Guard™ has both audible and visual alarms to alert the user to unsafe or undesirable conditions. Available in both flush and surface mount models, you may also choose between internal and remote sensors.
Designed with your critical environment in mind, the AeroMed ISO-Guard™ is capable of extremely accurate pressure differential measurements (to +/-0.0001”wg). Suitable for either negative or positive pressure applications, it is able to display and control room conditions such as pressure, temperature, air flow and humidity. ISO-Guard™ has both audible and visual alarms to alert the user to unsafe or undesirable conditions. Available in both flush and surface mount models, you may also choose between internal and remote sensors.
- Latest is sensing and display technology made easy for you!
- Easiest to view – Screen color tells alarm status! Large easy to read digits!
- Easiest to use – 3.2” touch screen allows for easy fingertip control!
- Easiest to Save with – Connected to other AeroMed devices, ISOGuard™ can help you save on energy expenses!
- Easiest to Integrate – Compatible with both BACnet and Metasys N2 protocol for easy integration into
- Large, 3.2” full color, touch screen display to effectively communication room conditions to staff
- Accepts multiple analog and digital inputs from external sensors for on screen display
- Can control external devices such as valves or fans in order to maintain a room pressure set point
- Used for either negative or positive pressure applications
- User configurable audible alarm
- BACnet and Metasys N2 compatible with no extra programming needed
| Electrical Specifications | |
|---|---|
| Power Supply : | 24 ±10%, 10VA 120 to 24Vac, 60Hz, step-down isolation transformer provided |
| Analog Inputs : | (4) 4-20mAdc, 0-5Vdc or 0-10Vdc |
| Analog Outputs : | (4) 4-20mAdc, 0-5Vdc or 0-10Vdc |
| Digital Inputs : | (4) Active-High or Active-Low |
| Relay Outputs : | (4) 1A@24Vdc, 0.5A@120Vac |
| Control Signal Wire Size : | 18 AWG minimum |
| Sensor Specifications | |
|---|---|
| Pressure Range : | ±0.2500”WC |
| Accuracy of Measurements: NIST Traceable/individual certification optional |
±0.5% FS |
| Optional external remote sensor distance : | Up to 4,000 feet |
| Optional external remote sensor wiring: | 18-22 AWG, shielded twisted pair |
| Relay Outputs : | (4) 1A@24Vdc, 0.5A@120Vac |
| Control Signal Wire Size : | 18 AWG minimum |
| Communications | |
|---|---|
| BACnet MS/TP Network : | 2 wire twisted pair, RS-485 signaling |
| Metasys N2 Network: | 2 wire twisted pair, RS-485 signaling |
| LonWorks FTT-10A Peer to Peer Network: | 2 wire twisted pair, FTT-10A signaling |
| Recommended cable type: | Belden 85102 |
| Touch Screen User Interface | |
|---|---|
| LCD Size : | 3.2” diagonal |
| LCD Type: | Transmissive |
| Resolution: | 240 x 320 |
| Viewing Area: | 50.60 mm x 66.80 mm |
| Color Depth: | 18-bit or 262k color/td> |
| Backlight Color: | White |
| Luminous Intensity: | Min 2500 cd/m2 |
